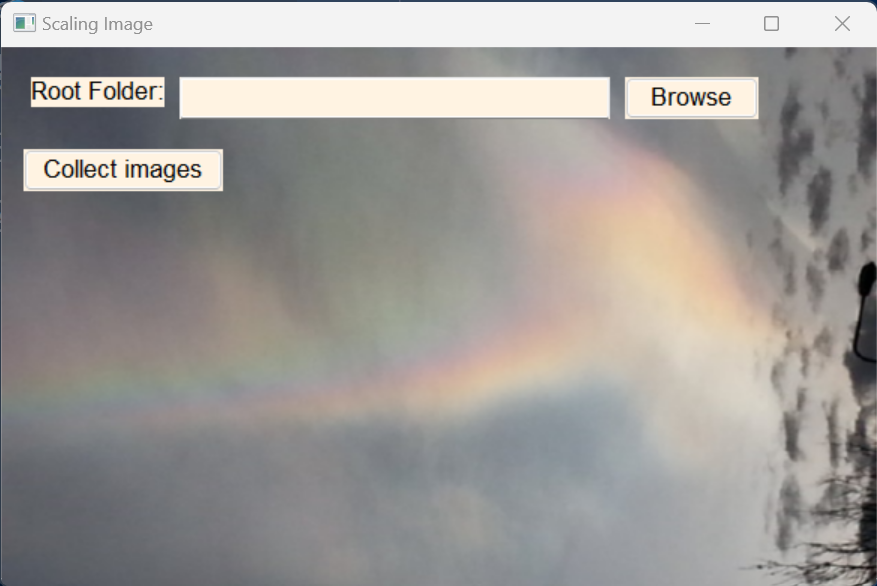

wxPython User Interface

I’m not ecstatic about the 90 degree corners. The whole UI is a little bit dated. But life is too short. The background image needs tweaking, but I don’t have any colour tools on this computer so we’ll live with it for now.

The image is of polar stratospheric clouds which made a wonderful showing here a few years back. I thought it would make a nice background. But the UI elements don’t work too well on it. However I’ve spent way too long on this UI already. It’s functional and that is the main thing.

It does look a whole lot better than it did. I think it is essential to be able to control the fonts – that helps make it look a little less dated. I found a very nice tutorial at this wxPython blog.

There are wx elements for most of the font options. But if you don’t like them you can use your own. wx.FONTSIZE_LARGE was too big and wx.FONTSIZE_MEDIUM was too small, so I used 13. It won’t scale down to a teeny phone but that’s not my target market so it’s fine.

The whole script is quite long but it’s because of all the code needed for the user interface. I will put the work into another script, so this script is pretty much final.

import wx

class MainPanel(wx.Panel):
    def __init__(self, parent):
        self.phBackgroundColour = (255, 243, 226)
        wx.Panel.__init__(self, parent, -1, style=wx.FULL_REPAINT_ON_RESIZE)
        self.Bind(wx.EVT_PAINT, self.OnPaint)
        self.img = wx.Image('background.jpg', wx.BITMAP_TYPE_JPEG)
        self.bckImageWidth, self.bckImageHeight = self.img.GetSize()
        self.SetBackgroundColour(self.phBackgroundColour)

        #   The purpose of a frame is to house UI elements
        file_sizer = wx.BoxSizer(wx.HORIZONTAL)
        file_sizer.AddSpacer(15)

        #   Get a font to use
        #https://www.blog.pythonlibrary.org/2011/04/28/wxpython-learning-to-use-fonts/
        self.photoFont = wx.Font(13, wx.FONTFAMILY_DECORATIVE, wx.FONTSTYLE_NORMAL,
                                   wx.FONTWEIGHT_MEDIUM)
        #Label text
        labelText = wx.StaticText(self, label='Root Folder:')
        labelText.SetFont(self.photoFont)
        file_sizer.Add(labelText, proportion=1, flag=wx.ALL, border=5)

        # File path editable text frame
        self.file_path = wx.TextCtrl(self)
        self.file_path.SetBackgroundColour(self.phBackgroundColour)
        self.file_path.SetFont(self.photoFont)
        file_sizer.Add(self.file_path, proportion=3, flag=wx.ALL, border=5)

        # Browse button
        browse_button = self.GetPhotoButton('Browse')
        browse_button.Bind(wx.EVT_BUTTON, self.onBrowseClicked)
        file_sizer.Add(browse_button, proportion=1,
                       flag=wx.ALL, border=5)
        file_sizer.AddSpacer(15)

        # All together
        main_sizer = wx.BoxSizer(wx.VERTICAL)
        main_sizer.AddSpacer(15)

        # Collect button below
        collect_button = self.GetPhotoButton('Collect images')
        collect_button.Bind(wx.EVT_BUTTON, self.onCollectClicked)

        # All together
        main_sizer.Add(file_sizer)
        main_sizer.Add(collect_button, 0, wx.ALL, 15)
        self.SetSizer(main_sizer)
        self.call_me()      # NB: Dont put self in brackets

    def OnPaint(self, event):
        dc = wx.PaintDC(self)
        dc.Clear()
        width,height = self.GetSize()
        posx,posy = 0, 0

        img = self.img.Scale(width,height, wx.IMAGE_QUALITY_HIGH)
        self.bmp = wx.Bitmap(img)
        dc.DrawBitmap(self.bmp,posx,posy)

    def call_me(self) :
        self.file_path.SetValue('')

    def onBrowseClicked(self, event):
        #
        print('You clicked Browse')
        self.dir = event.GetString()
        dlg = wx.DirDialog (None, "Choose input directory", "",
                    wx.DD_DEFAULT_STYLE | wx.DD_DIR_MUST_EXIST)
        if dlg.ShowModal() == wx.ID_OK:
            print('Selected files are: ', dlg.GetPath())
            self.file_path.SetValue(dlg.GetPath())
        dlg.Destroy()

    def onCollectClicked(self, event):
        #
        print('You clicked Collect')


    def OnClose(self, e):
        super().Close(True)

    def GetPhotoButton(self, buttonLabel):
        browse_button = wx.Button(self, label=buttonLabel)
        browse_button.SetBackgroundColour(self.phBackgroundColour)
        browse_button.SetFont(self.photoFont)
        return browse_button

class MainFrame(wx.Frame):
    def __init__(self, parent):
        wx.Frame.__init__(self, parent, -1, title='Scaling Image', size=(600,400))
        self.panel = MainPanel(self)
        self.panel.SetAutoLayout(1)
        self.Show()

app = wx.App(0)
frame = MainFrame(None)
app.MainLoop()
